CREE XMLcolor
5050
3V

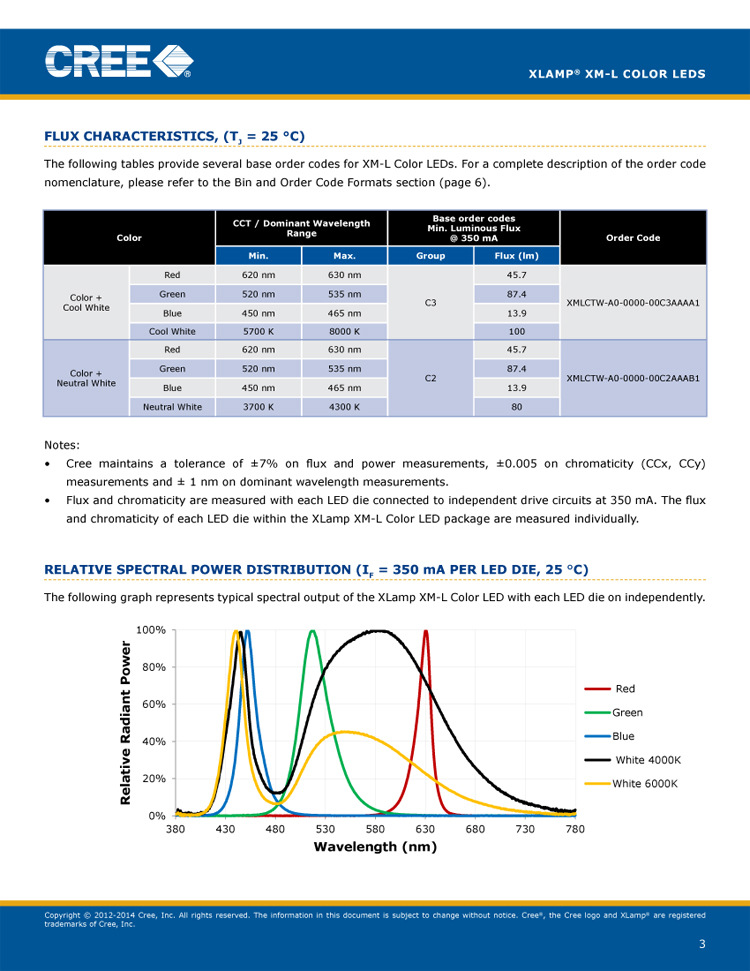

XLampXML_Color (2).pdf| Part | Color | CCT / Dominant Wavelength | Base order codes | Order Code | |||
| Range | Min Luminous Flux (lm)@350mA | ||||||
| Min. | Max. | Group | Flux (lm) | ||||
| Color | Red | 620nm | 630nm | C3 | 45.7 | XMLCTW-A0-0000-00C3AAAA1 | |
| Green | 520nm | 530nm | 87.4 | ||||
| Blue | 450nm | 465nm | 13.9 | ||||
| Cool White | 5700K | 8000K | 100 | ||||
| Red | 620nm | 630nm | C2 | 45.7 | XMLCTW-A0-0000-00C2AAAB1 | ||
| Green | 520nm | 530nm | 87.4 | ||||
| Blue | 450nm | 465nm | 13.9 | ||||
| Neutral White | 3700K | 4300K | 80 | ||||

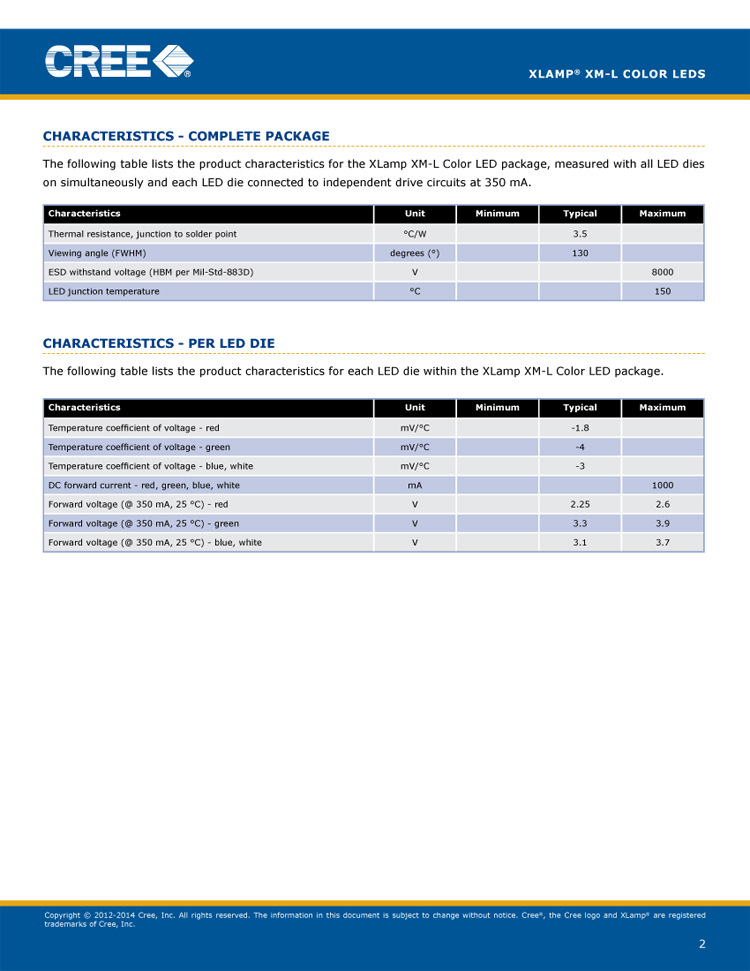

| Characteristics | Unit | Red | Green | Blue | White | ||
| DC Forward Current | Ma | Max. | 1000 | 1000 | 1000 | 1000 | |
| Forward Voltage (@ 350 mA) | V | Typ. | 2.25 | 3.3 | 3.1 | 3.1 | |
| Max. | 2.6 | 3.9 | 3.7 | 3.7 | |||
| Forward Voltage (@ 700 mA) | V | Typ. | 2.5 | 3.6 | 3.4 | 3.4 | |
